PUF PANEL

Alpha Sandwich PUF panel installations done in various applications ranging from Modular Cold Rooms, Communication Shelters, Refrigerated warehouses as well as insulated truck bodies and Clean Rooms.

Basically, Sandwich panels are made of two colour coated metal sheets with an insulation material sandwiched in between. All these PUF Sandwich Panels are light in weight and easy to handle with high strength that make them best suited for making:

  • Cold Rooms & Cold Stores
  • Ripening Rooms for vegetables & Fruits
  • Food Processing Plants.

Sandwich Puff Panel are self-supporting insulated which are light weight, ready-to-use for industrial and commercial roofs and side wall panels consisting of outer and inner metal sheet bonded with core of either EPS, XPS or Rock Wool.

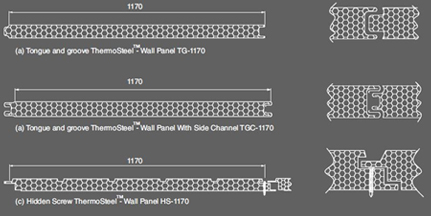

Wall Sandwich Panels

Wall sandwich panel consist of top and bottom sheet with light profiled ribs with core of insulation. It has easy to fit male-female joints supported by in-built C channels.

These Panels has special concealed fastening solutions with top side reverse deep rib profile giving aesthetic looks to the building.

These panels can be used in the walls in horizontal as well as vertical position. Can also be used in partitions and false ceilings.

 Wall Sandwich Panels

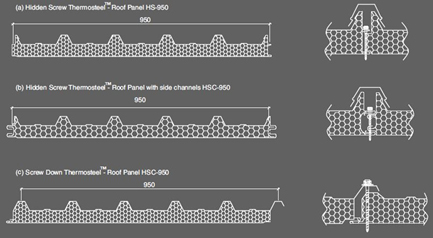

Roof Sandwich Panels

Roof sandwich panel consist of top trapezoidal sheet and bottom sheet with light profiled ribs with core of insulation. This product has a unique joint for side lap with concealed fastening solutions supported by in-built Channels. The joint is covered by clip flashing. The roof has no hole or fasteners making it leak proof and good looking.

 Wall Sandwich Panels
Advantages
  • Hidden self tapping
  • Screws for aesthetic appeal
  • Fast & easy installation
  • Light in weight
  • Consume less space
  • Various designs and vibrant colors
  • 100& leak proof
  • High fire resistance rating
  • Rigid and sturdy in construction
  • High impact strength
  • Economical
  • Sound Insulation
Application

Our fabricated Sandwich PUF Panels find wide application in:

  • Mobile Ambulance
  • Food & Beverage Industry
  • Living Shelters
  • Clean Room Enclosures
  • Mobile Food Closures
  • Industrial buildings
  • Commercial buildings
  • Warehouse & Godowns
  • Farm houses
  • Pharmaceutical manufacturing units
  • Air handling units
  • Dairy industry
