MEZZANINE FLOOR

Intermediate mezzanine floor are possible in metal building with steel deck (decking profile sheet / chequered plate), supported by joist beam onto main beam. Applied live load and column spacing can affect the economy of mezzanine solutions.

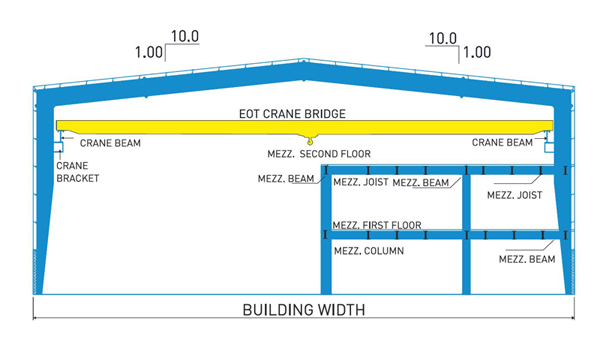

Mezzanine floor cross section

Mezzanine floor layout

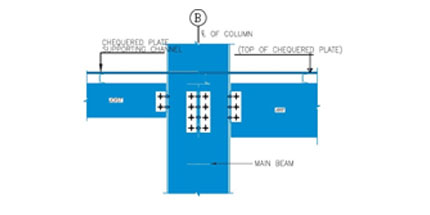

MEZZ. BEAM AT MID COLUMN

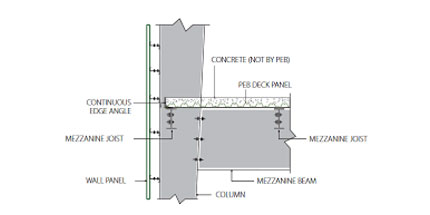

MEZZ. BEAM AT END COLUMN
