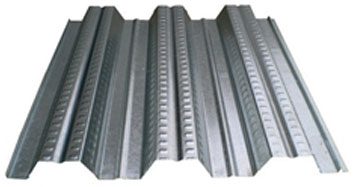

DECKING SHEET

Composite Steel Floor Decking is Cold-Formed Steel Decking, which acts as a permanent form. Composite Steel Floor Decking also acts as the positive bending reinforcement for the structural concrete. Which are built into the deck creating a reinforcement concrete slab and act as working platform.

Various applications are multi-storey buildings, mezzanines, bridge walkways, platforms and parking garages, storage facilities, etc.

Technical Specifications

Deck Profile	Depth	Width	Pitch	Thickness
44/130	44 mm	956 mm	130 mm	0.63 mm – 1.6 mm
52/324	52 mm	976 mm	324 mm	0.80 mm – 1.5 mm
75/300	75 mm	906 mm	300 mm	0.80 mm – 1.5 mm
Raw Material Standards: As per ASTM A653 / IS 277
